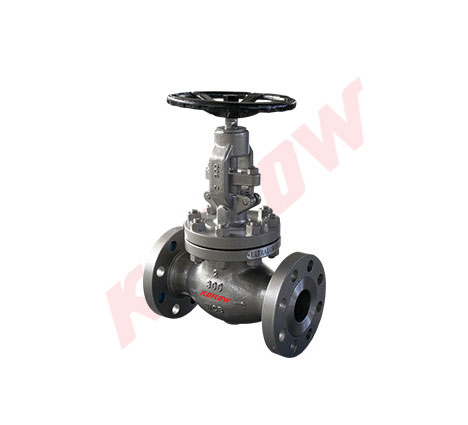

Main features: Globe valves belong to forced sealing valves, so when the valve is closed, pressure must be applied to the valve disc to force the sealing surface not to leak. When the shut-off valve is opened, the opening height of the valve disc is 25% to 30% of the nominal diameter The flow rate has reached its maximum and has a very reliable shut-off function. Due to the proportional relationship between the change of the valve seat opening and the stroke of the valve disc, it is very suitable for regulating the flow rate. It can be used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil, liquid metals, and radioactive media
Design standards: BS 1873   API 623
Product range:
1. Pressure range: CLASS     150Lb~2500Lb
2 nominal diameter:  NPS         2~32″
3. Main material: Carbon steel  Stainless steel  Dual phase stainless steel  Alloy steel   Nickel alloy steel
4 Connection forms: RF    RTJ    BW
5 operating modes: handwheel, gear, electric device, pneumatic device, hydraulic device, gas-liquid linkage device
Product features:
1. Quick opening and closing
2. The sealing surface has no wear during opening and closing, and has a long service life
Three valve discs can be selected from four types: conical, spherical, planar, and parabolic
4. Optional dynamic load packing
6. Low leakage packing materials can be selected to meet the requirements of ISO 15848
7 options for soft seal design
The valve stem can be extended in design
9. Optional jacket insulation design;
