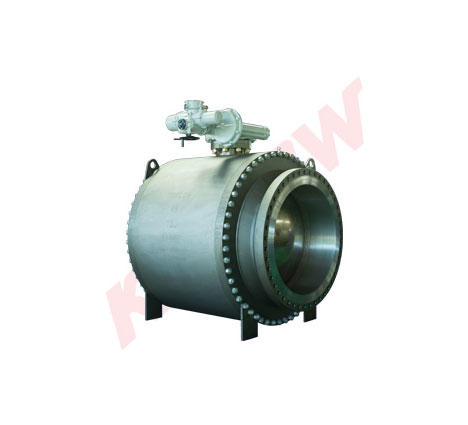

Main features: The force generated by the fluid pressure in front of the valve on the ball is all transmitted to the bearing, which will not cause the ball to move towards the valve seat, so the valve seat will not bear excessive pressure. Therefore, the torque of the fixed ball valve is small, the deformation of the valve seat is small, the sealing performance is stable, and the service life is long. It is suitable for long-distance pipelines and general industrial pipelines. Its strength, safety, and resistance to harsh environments have been specially considered in the design, and it is suitable for various corrosive and non corrosive media.
Design standards: API 6D ISO 17292
Product range:
1. Pressure range: CLASS 150Lb~2500Lb
2. nominal diameter: NPS 2~60″
3. Main materials: Carbon steel, stainless steel, duplex stainless steel, alloy steel, nickel alloy steel
4. Connection forms: RF RTJ BW
5. Operation modes: handle, worm gear, electric device, pneumatic device, hydraulic device, gas-liquid linkage device;
Product features:
1. Low fluid resistance;
2. piston valve seat, designed with fire-resistant and anti-static structure;
3. Unrestricted flow direction of the medium;
4. When fully open, the sealing surface is not eroded by the working medium;
5. can choose dynamic load packing;
6. Low leakage packing materials can be selected to meet the requirements of ISO 15848;
7. The valve stem can be designed with an extended length;
8. options for hard seal design;
9. can choose DBB, DIB-1, DIB-2 structures;
10. spheres are fixed with support plates and fixed shafts;
